2+2四爪油壓卡盤 KTT-A/B
零售價
0.0
Yuan
市場價
0.0
Yuan
瀏覽量:
1013
產品編號
數量
-
+
庫存:
0
產品描述
參數
|

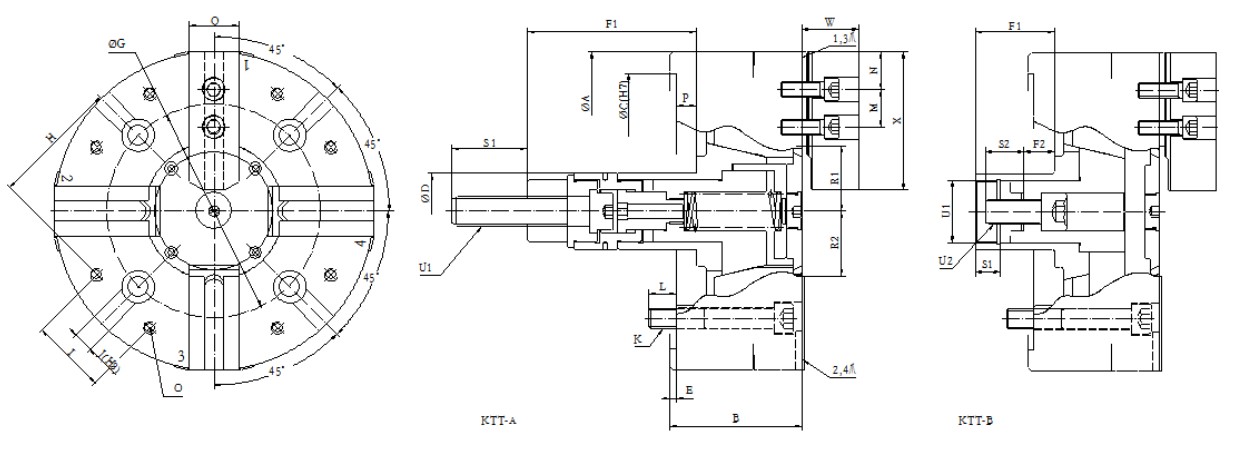

尺寸Dimensions 型號Type |
φA1 (mm) |
B (mm) |
φC(H) (mm) |
φD (mm) |
E (mm) |
F1 (mm) |
F2 (mm) |
φG (mm) |
H (mm) |
I (mm) |
J (mm) |
K (mm) |
|
KTT210-A
|
210
|
92
|
170
|
51
|
5
|
121 |
-
|
133.4
|
80
|
45
|
16
|
12
|
|
KTT210-B
|
210
|
92
|
170
|
51
|
5
|
53 |
20
|
133.4
|
80
|
45
|
16
|
12
|
|
KTT254-A
|
254
|
105
|
220
|
61
|
5
|
135 |
-
|
171.4
|
102
|
60
|
16
|
16
|
|
KTT254-B
|
254
|
105
|
220
|
61
|
5
|
63 |
20
|
171.4
|
102
|
60
|
16
|
16
|
|
KTT315-A
|
315
|
111
|
300
|
61
|
5
|
133 |
-
|
235
|
100
|
60
|
20
|
20
|
|
KTT315-B
|
315
|
111
|
300
|
61
|
5
|
61 |
20
|
235
|
100
|
60
|
20
|
20
|
|
KTT400-A
|
400
|
116
|
300
|
71
|
6
|
158 |
-
|
235
|
150
|
80
|
20
|
20
|
|
KTT400-B
|
400
|
116
|
300
|
71
|
6
|
76 |
20
|
235
|
150
|
80
|
20
|
20
|
|
尺寸Dimensions 型號Type |
L(mm) |
M(mm) |
N((mm) |
φO(mm) |
P(mm) |
Q((mm) |
R1/R2(mm) |
S1(mm） |
S2(mm) |
U(mm) |
W(mm) |
X(mm) |
|
KTT210-A
|
16
|
25
|
25
|
M8
|
-8~11
|
35
|
35~39.35
|
60
|
-
|
M20 | 38 | 95 |
|
KTT210-B
|
15
|
25
|
25
|
M8
|
-8~13
|
35
|
35~39.35
|
60
|
29
|
M38*1.5 | 38 | 95 |
|
KTT254-A
|
22
|
30
|
30
|
M10
|
-8~16
|
40
|
46.5~52
|
60
|
-
|
M24 | 43 | 110 |
|
KTT254-B
|
22
|
30
|
30
|
M10
|
-8~16
|
40
|
46.5~52
|
60
|
31
|
M50*1.5 | 43 | 110 |
|
KTT315-A
|
20
|
39
|
30
|
M10
|
-8~16
|
50
|
61.5~67
|
60
|
-
|
M24 | 51 | 130 |
|
KTT315-B
|
20
|
39
|
30
|
M10
|
-8~16
|
50
|
61.5~67
|
60
|
29
|
M56*2 | 51 | 130 |
|
KTT400-A
|
25
|
39
|
30
|
M12
|
-10~23
|
50
|
74.2~81.8
|
60
|
|
M24 | 63 | 165 |
|
KTT400-B
|
25
|
39
|
30
|
M12
|
-10~23
|
50
|
74.2~81.8
|
60
|
29
|
M56*2 | 63 | 165 |
|
尺寸Dimensions 型號Type |
柱塞行程Plunger stroke(mm) |
爪行程（直徑）Jaw stroke(DIA.mm) |
最大拉力(1,3爪) MaxiPull Force kgf(KN) |
最大夾持力(1,3) Maximu clamping Force kgf(KN) |
最大推拉力(2,4爪) Max.Pull Force(KN) |
最大定心力(2,4爪) Max.Pull Force(KN) |
搭配油缸型號 Matchingcylinder |
重量Weigt(kg) |
|
KTT210-A
|
19
|
8.7
|
26
|
65
|
-
|
10 |
B-R1225
|
22.5
|
|
KTT210-B
|
19
|
8.7
|
23
|
65
|
17
|
50 |
B-R1225
|
21
|
|
KTT254-A
|
24
|
11
|
35
|
88
|
-
|
14 |
B-R1225
|
35.5
|
|
KTT254-B
|
24
|
11
|
31
|
88
|
22
|
65 |
B-R1225
|
34
|
|
KTT315-A
|
24
|
11
|
40
|
103
|
-
|
14 |
B-R1530
|
51
|
|
KTT315-B
|
24
|
11
|
36
|
103
|
27
|
77 |
B-R1530
|
48
|
|
KTT400-A
|
33
|
15.2
|
54
|
135
|
-
|
22 |
B-R1530
|
105
|
|
KTT400-B
|
33
|
15.2
|
45
|
135
|
31
|
90 |
B-R1530
|
102
|
04·81
