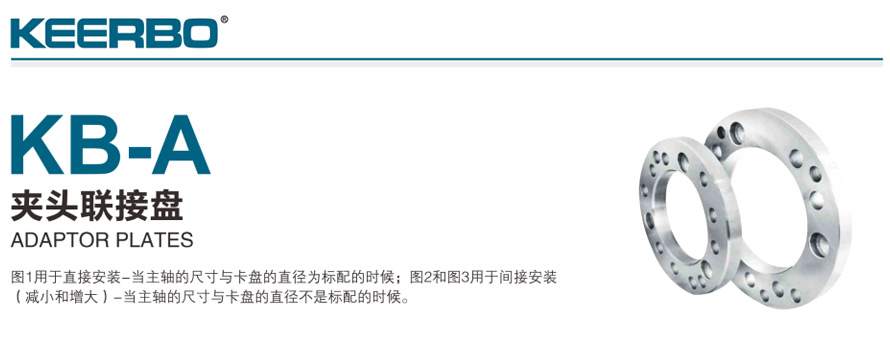

夾頭聯接盤 KB-A
零售價
0.0
Yuan
市場價
0.0
Yuan
瀏覽量:
1014
產品編號
數量
-
+
庫存:
0
產品描述
參數
|
尺寸Dimensions 型號Type |
主軸軸端 |
A(h6)(mm) |
B(mm) |
B1(mm) |
C(mm) |
D(mm) |
D1(mm) |
E(mm) |
F(mm) |

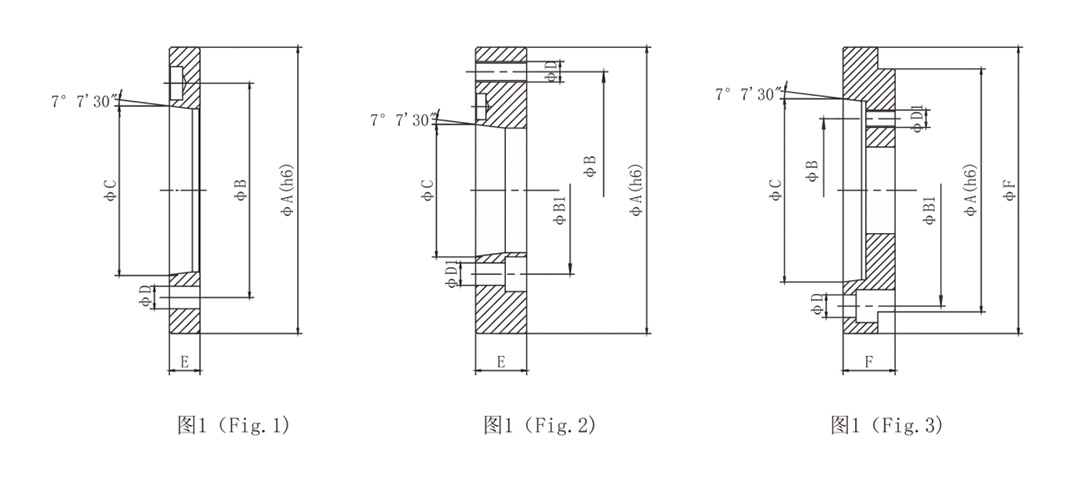

參數圖 |
重量 Weight(kg) |
|
KB005A04
|
A4
|
110 |
82.6
|
—
|
63.15
|
9
|
—
|
15 |
—
|
圖1(Fig.1)
|
0.7
|
| KB005A05 | A5 | 110 | 82.6 | 104.6 | 82.56 | M10 | 11 | 30 | 135 | 圖3(Fig.3) | 2.1 |
|
KB006A04
|
A4
|
140
|
104.8
|
82.6
|
63.51
|
M10 | 9 |
20
|
—
|
圖2(Fig.2)
|
1.8
|
|
KB006A05
|
A5
|
140
|
104.8
|
—
|
82.56
|
11
|
—
|
15
|
—
|
圖1(Fig.1)
|
1
|
|
KB006A06
|
A6
|
140
|
104.8
|
133.4
|
106.38
|
M10 | 13 |
30
|
165
|
圖3(Fig.3)
|
2.8 |
|
KB008A05
|
A5
|
170
|
133.4
|
104.8
|
82.56
|
M12 | 11 |
24
|
—
|
圖2(Fig.2)
|
3 |
|
KB008A06
|
A6
|
170
|
133.4
|
—
|
106.38
|
13
|
—
|
17
|
—
|
圖1(Fig.1)
|
1.7
|
|
KB008A08
|
A8
|
170
|
133.4
|
171.4
|
139.78
|
M12 | 17 | 35 |
208
|
圖3(Fig.3)
|
4.7 |
|
KB010A06
|
A6
|
220
|
171.4
|
133.4
|
106.38
|
M16 | 13 |
28
|
—
|
圖2(Fig.2)
|
5.8 |
|
KB010A08
|
A8
|
220
|
171.4
|
—
|
139.78
|
17
|
—
|
18
|
—
|
圖1(Fig.1)
|
2.7 |
|
KB015A08
|
A8
|
300
|
235
|
171.4
|
139.78
|
M20 | 17 |
27
|
—
|
圖2(Fig.2)
|
10.6 |
|
KB015A11
|
A11
|
300
|
235
|
—
|
196.87
|
21
|
—
|
22
|
—
|
圖1(Fig.1)
|
6.2
|
|
KB015A15
|
A15
|
300
|
235
|
330.2
|
285.78
|
M20 | 26 | 46 |
380
|
圖3(Fig.3)
|
19.7
|
|
KB021A08
|
A8
|
380
|
330.2
|
171.4
|
139.72
|
M24 | 17 | 30 |
—
|
圖2(Fig.2)
|
21
|
|
KB021A11
|
A11
|
380
|
330.2
|
235
|
196.87
|
M24 |
22
|
32 |
—
|
圖2(Fig.2)
|
18
|
|
KB021A15
|
A15
|
380
|
330.2
|
—
|
285.75
|
26
|
—
|
27
|
—
|
圖1(Fig.1)
|
9.4 |
|
KB021A20
|
A20
|
380
|
330.2
|
463.6
|
412.78
|
M24 | 32 |
58
|
520
|
圖3(Fig.3)
|
39 |
