中空高速三爪油壓卡盤 BN
零售價
0.0
Yuan
市場價
0.0
Yuan
瀏覽量:
1050
產品編號
數量
-
+
庫存:
0
產品描述
參數
|

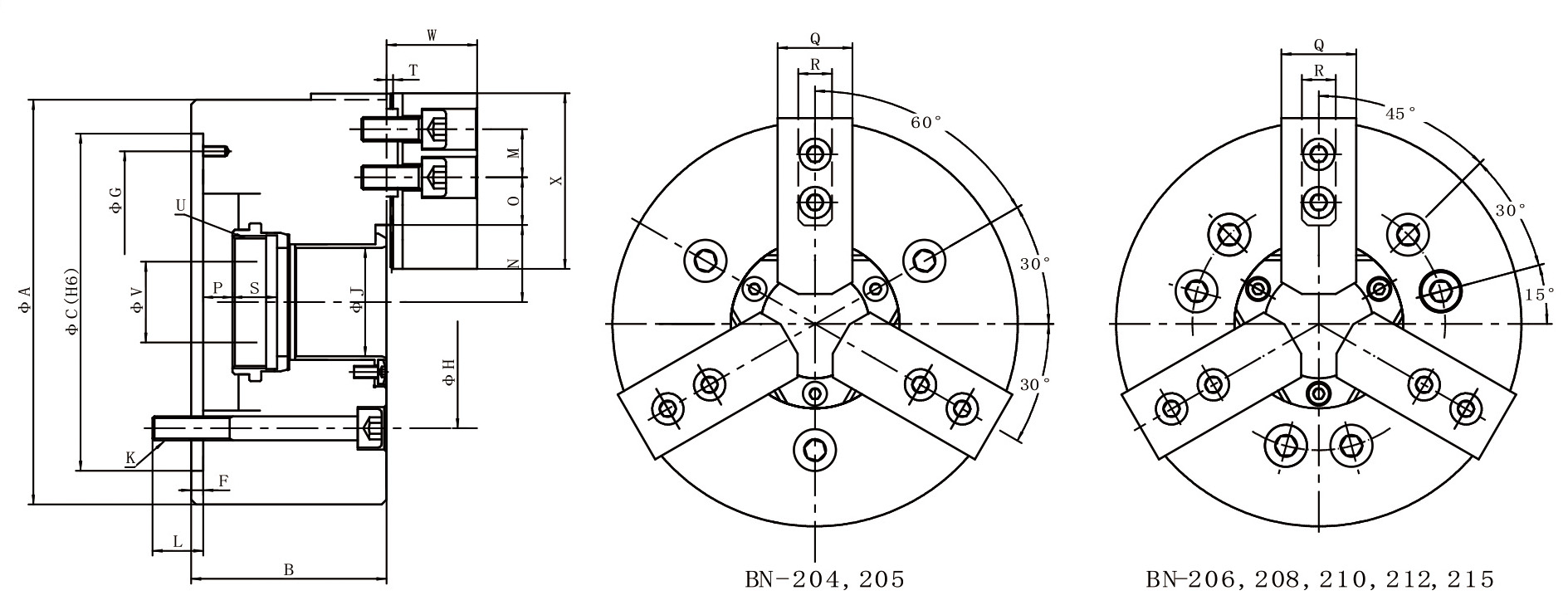

尺寸Dimensions 型號Type |
A(mm) |
B(mm) |
C(H6).(mm) |
F.(mm) |
G(mm) |
H(mm) |
J(mm) |
K(mm) |
L(mm) |
M(mm) |
N(mm) |
|
BN-204
|
110
|
59
|
85
|
4
|
76
|
70.6
|
26
|
3-M10*1.5P
|
15
|
14
|
20.3~23
|
|
BN-205
|
135
|
60
|
110
|
4
|
96
|
82.6
|
33
|
3-M10*1.5P
|
15
|
14
|
23.8~26.5
|
|
BN-206
|
168
|
71
|
140
|
5
|
116
|
104.8
|
45
|
6-M10*1.5P
|
16
|
20
|
29.25~32.0
|
|
BN-208
|
210
|
91
|
170
|
5
|
150
|
133.4
|
52
|
6-M12*1.75P
|
18
|
25
|
35~38.7
|
|
BN-210
|
254
|
100
|
220
|
5
|
190
|
171.4
|
75
|
6-M16*2P
|
19
|
30
|
46.6~51.0
|
|
BN-212
|
304
|
110
|
220
|
6
|
190
|
171.4
|
91
|
6-M16*2P
|
25
|
30
|
56~61.3
|
|
BN-215
|
381
|
133
|
300
|
6
|
260
|
235.0
|
117.5
|
6-M20*2.5P
|
28
|
43
|
64.7~70.0
|
|
BN-06
|
165
|
83
|
140
|
5
|
116
|
104.8
|
33
|
6-M10*1.5P
|
16
|
20
|
29.5~32.0
|
|
BN-10
|
254
|
100
|
220
|
5
|
190
|
171.4
|
65
|
6-M16*2P
|
19
|
25
|
46.6~51.0
|
|
尺寸Dimensions 型號Type |
O(mm) |
P(mm) |
Q(mm) |
R(mm) |
S(mm) |
T(mm) |
U(mm) |
V(mm) |
W(mm) |
X(mm) |
|
BN-204
|
6.75~11.25
|
6.5~3.5
|
23
|
10
|
18
|
1
|
M32*1.5P
|
12
|
24
|
53
|
|
BN-205
|
6~19
|
-9~1
|
25
|
10
|
19.0
|
2
|
M40*1.5P
|
12
|
31.5
|
62
|
|
BN-206
|
7~24
|
-1~11
|
31
|
12
|
19.0
|
2
|
M55*2P
|
20
|
37
|
73
|
|
BN-208
|
10~30
|
-1.5~14.5
|
35
|
14
|
20.0
|
2
|
M60*2P
|
30
|
39
|
95
|
|
BN-210
|
12~34
|
-10.5~8
|
40
|
16
|
25.0
|
2
|
M-85*2P
|
40
|
43
|
110
|
|
BN-212
|
12~46
|
-15~8
|
50
|
21
|
28.0
|
2
|
M100*2P
|
50
|
51
|
129
|
|
BN-215
|
20.25~54.75
|
0~23
|
62
|
22
|
42.5
|
5
|
M130*2P
|
60
|
66
|
165
|
|
BN-06
|
7~24
|
-1~11
|
31
|
12
|
24.0
|
2
|
M42*1.5P
|
12
|
37
|
73
|
|
BN-10
|
12~34
|
-10~8.5
|
40
|
16
|
35.0
|
2
|
M75*2P
|
30
|
51
|
129
|
|
尺寸Dimensions 型號Type |
通孔直徑 Thtu-Hole (DIA.mm) |
柱塞行程Plunger stroke(mm) |
爪行程（直徑）Jaw stroke (DIA.mm) |
最高回轉速 Max mum speed(mm) |
最大拉力 MaxiPull Force kgf(KN) |
最大靜夾持力 Maximu clamping Force kgf(KN) |
搭配油缸型號 Matching cylinder |
夾持范圍 Clamping range(mm) |
最高使用壓力 Maxipressure kigf/cm(mpa) |
重量 Weight(kg) |
|
|
最大Max. |
最小Min. |
||||||||||
|
BN-204
|
26
|
10
|
5.4
|
7200
|
14
|
28.5
|
BS1028
|
110
|
7
|
2.8
|
4
|
|
BN-205
|
33.0
|
10
|
5.4
|
6300
|
17
|
35
|
BS1036
|
135
|
10
|
3.4
|
6
|
|
BN-206
|
45.0
|
12
|
5.5
|
6000
|
21
|
56
|
BS1246
|
168
|
13
|
2.7
|
12.5
|
|
BN-208
|
52.0
|
16
|
7.4
|
4800
|
66
|
82
|
BS1552
|
210
|
16
|
2.5
|
22
|
|
BN-210
|
75.0
|
19
|
8.8
|
4200
|
42
|
108
|
BS1875
|
254
|
25
|
2.6
|
33.6
|
|
BN-212
|
91.0
|
23
|
10.6
|
3300
|
55
|
140
|
BS2091
|
304
|
23
|
2.6
|
53.3
|
|
BN-215
|
117.5
|
23
|
10.6
|
2500
|
98
|
248
|
BS2511
|
381
|
42
|
3.3
|
117
|
|
BN-06
|
33.0
|
12
|
5.5
|
6000
|
21
|
56
|
BS1246
|
165
|
13
|
2.7
|
12.5
|
|
BN-10
|
65.0
|
19
|
8.8
|
4200
|
42
|
108
|
BS1875
|
254
|
25
|
2.6
|
34
|
